Product Details

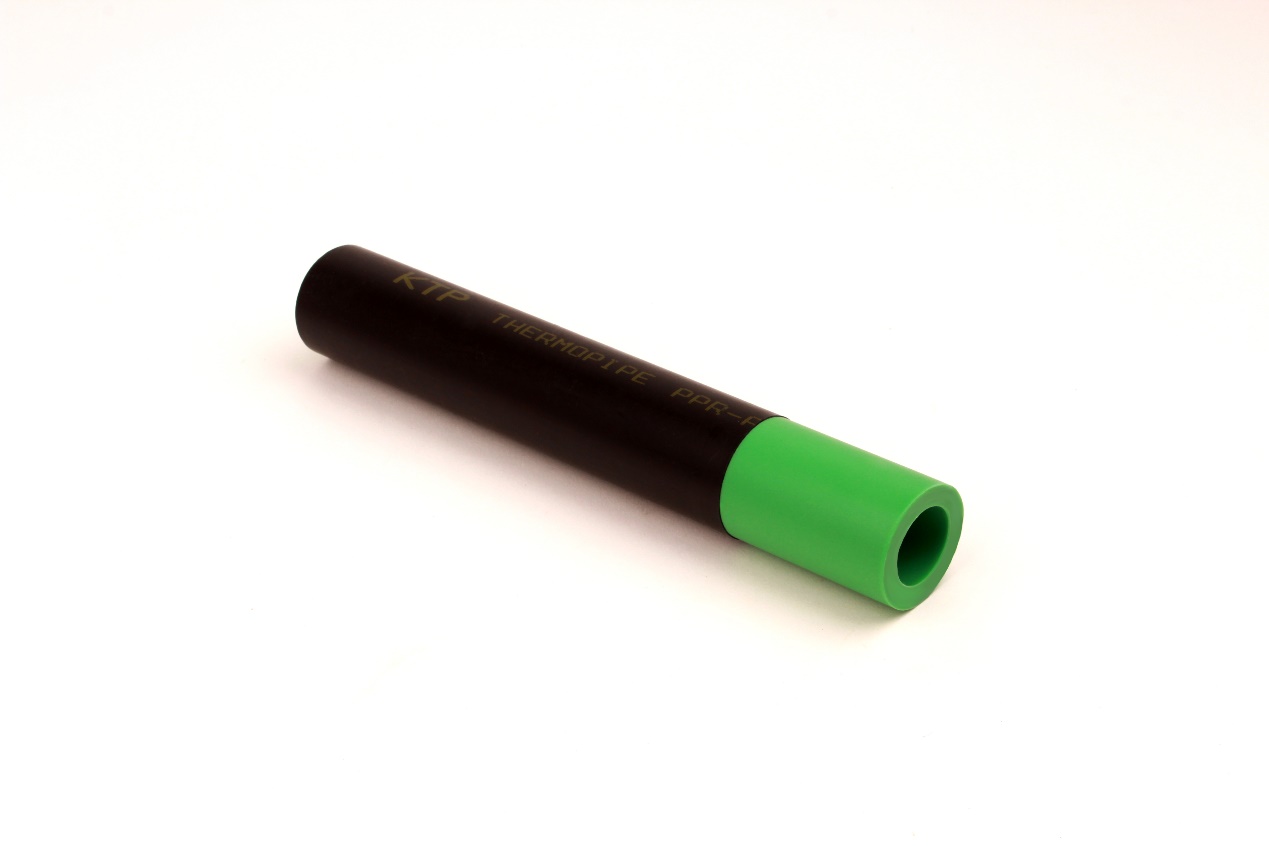

K.T.P. PPr - PE PIPE
- CATEGORY: KTP multilayers pipes
Complete Description
- Increase life period of pipe when installed and
outdoor exposure.
- Protect PPr Piping from UV radiation.
- Inner layer of composite
satisfies with DIN8077, DIN8078 standards and the composite satisfies according
to SASO - ISO 15874 standards.
- Fittings used for installation are similar to single layer PPr pipes.
- KTP Class 2/8 Bars Standard pipe Schedule shall be maintained during manufacturing.
- PE outer layer can be easily
peel off at the melting area while welding and Joining with fittings.
PIPE SIZE
NOMINAL DIAMETER
(D)in mm
OUTER DIAMETER
(Dg) in mm
INTERNAL DIAMETER
(d) in mm
NOMINAL THICKNESS
(S) in mm
TOTAL THICKNESS (Sg)
in mm
Ø 20
20.00
21.80
13.20
3.40-4.00
4.30-4.90
Ø 25
25.00
27.00
16.60
4.20-4.90
5.20-5.90
Ø 32
32.00
34.00
21.20
5.40-6.20
6.40-7.20
Ø 40
40.00
42.20
26.60
6.70-7.60
7.80-8.70
Ø 50
50.00
52.20
33.40
8.30-9.40
9.40-10.50
Ø 63
63.00
65.40
42.00
10.50-11.80
11.70-13.00
Ø 75
75.00
77.40
50.00
12.50-14.00
13.70.15.50
Ø 90
90.00
93.00
60.00
15.00-16.80
16.50-18.30
Ø 110
110.00
113.60
73.40
18.30-20.40
20.20-22.00
